In large-scale mineral processing systems, the Semi-Autogenous Grinding (SAG) mill serves as a critical piece of grinding equipment. Its operational stability and processing capacity directly affect the efficiency of the entire production line. As the primary structural component of the SAG mill, the shell plays a vital role in ensuring reliable and efficient operation.

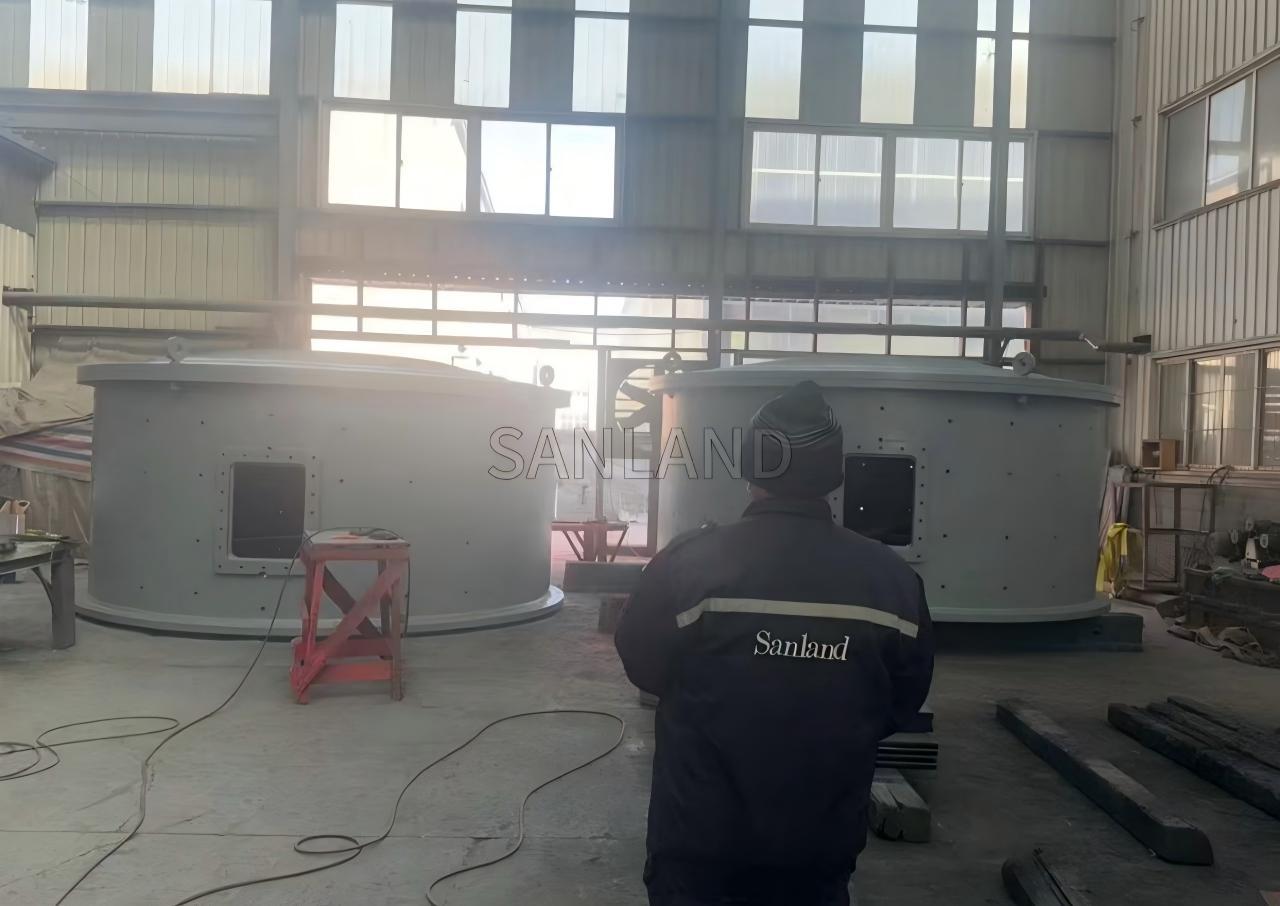

The SAG mill shell is the main load-bearing structure of the equipment. During operation, it contains ore, grinding media (steel balls), and liners. As the mill rotates, impact and grinding actions are generated to achieve material size reduction. The shell must withstand significant impact loads from ore and steel balls, as well as long-term cyclic stress. Therefore, extremely high requirements are placed on material strength, welding quality, and overall structural design.

From a structural design perspective, the shell is typically fabricated from high-strength low-alloy steel plates through rolling and welding processes. Precision-machined flange connections ensure installation accuracy and concentricity during assembly. Inside the shell, wear-resistant liners are installed. Proper liner design and arrangement enhance lifting capacity and impact efficiency while effectively protecting the shell body and extending service life.

During manufacturing, strict control of rolling accuracy, weld seam quality, and overall roundness is essential. Advanced welding procedures, non-destructive testing (NDT), and comprehensive dimensional inspections are critical to ensuring long-term operational safety and stability. In addition, the fabrication and transportation of large-scale shells demonstrate a company’s comprehensive capability in heavy structural manufacturing.

The quality of the SAG mill shell directly influences vibration control, operational smoothness, and grinding efficiency. A well-manufactured shell not only improves processing capacity but also reduces energy consumption and maintenance costs, providing strong support for efficient and stable mining operations.

With the continuous expansion of mining capacities and increasing throughput demands, SAG mill shell design and manufacturing are evolving toward larger dimensions, higher strength, and longer service life, supporting the advancement of modern mineral processing equipment.
